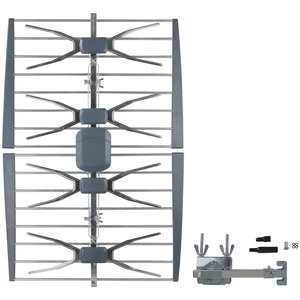

ANTENNA TV UHF PHASED ARRAY KINGRAY

This heavy duty UHF phased array is ideal for problem digital reception areas where you may not have direct line of sight to the transmitter or there may be multipath issues due to reflected signals. It is capable of receiving either horizontal or vertical signals by changing the orientation of the heavy duty mounting bracket/U-bolt assembly. The LTE filter provides protection against 4G/LTE telephone communications.

Specifications:

Gain: 12.5dB

Wind load (N): 78

Frequency (MHz): 519-694

Beamwidth (Hor): +/-25 degrees

Weight(Kg): 1.65

Channels: 27-51

Beamwidth (Ver): +/-20 degrees

Size (mm): 815 x 545

F connector: yes

Front to Back ratio: 22dB

No of Elements: 4

Impedance: 75 Ohm



$129.00
